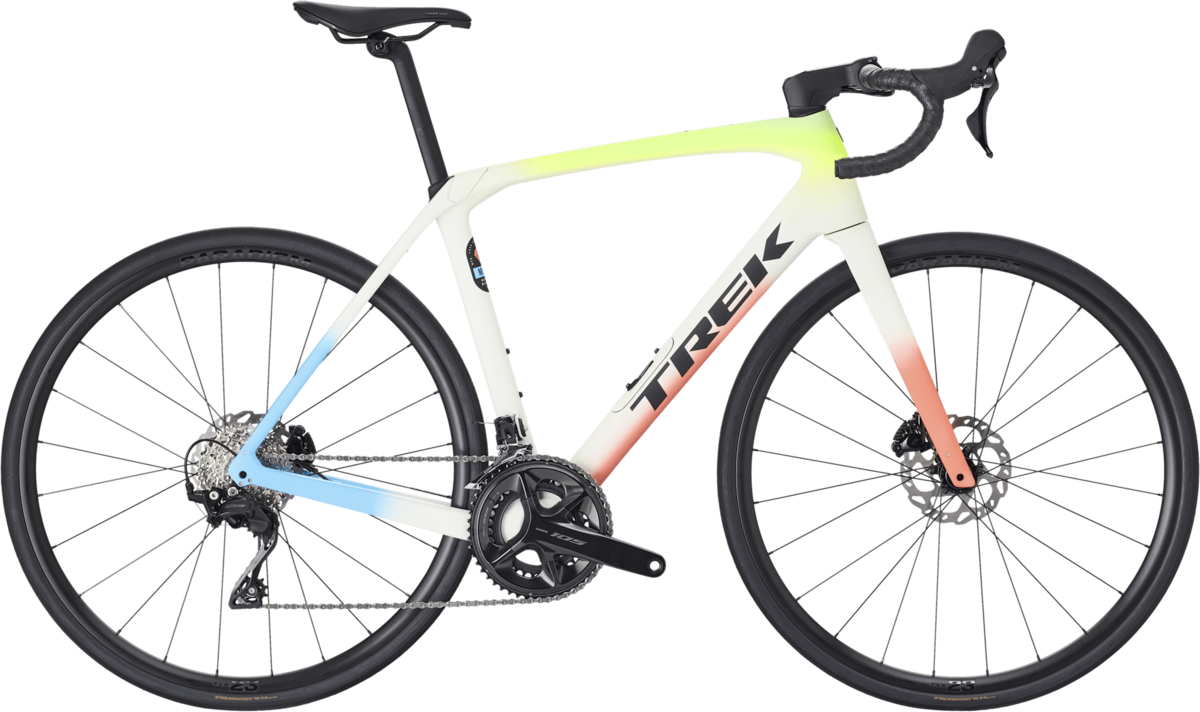

Trek Domane SL 5 Gen 4
$3,799.99
Details
Domane SL 5 is an endurance road bike ready to comfortably take on rough roads and long miles in comfort. It's crafted with a lightweight 500 Series OCLV Carbon frame speced with a reliable Shimano 105 drivetrain, and aluminum wheels and aluminum handlebars to balance performance and price.
| Frame Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|
| Seat tube (cm) | 39 | 42 | 45 | 47.5 | 50 | 52.5 | 54.8 | 56.7 | 58.6 |
| Seat tube angle | 74.6° | 74.6° | 74.6° | 74.2° | 73.7° | 73.3° | 73.0° | 72.8° | 72.5° |
| Head tube length (cm) | 9.5 | 11 | 13 | 14.5 | 16 | 17.5 | 19.5 | 22 | 24.5 |
| Head angle | 70.3° | 71.0° | 71.1° | 71.3° | 71.3° | 71.9° | 72.0° | 72.1° | 72.1° |
| Effective top tube (cm) | 50.1 | 50.9 | 51.9 | 53 | 54.2 | 55.4 | 56.7 | 57.9 | 59.3 |
| Bottom bracket drop (cm) | 8 | 8 | 8 | 8 | 8 | 7.8 | 7.8 | 7.5 | 7.5 |
| Chainstay length (cm) | 42 | 42 | 42 | 42 | 42 | 42 | 42.5 | 42.5 | 42.5 |
| Offset (cm) | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 | 4.8 |
| Trail (cm) | 6.6 | 6.1 | 6 | 5.9 | 5.9 | 6.1 | 6 | 5.9 | 5.9 |
| Wheelbase (cm) | 98.3 | 98.6 | 99.6 | 100.3 | 101 | 100.8 | 102.2 | 103.2 | 104.2 |
| Standover (cm) | 65.7 | 68.6 | 71.6 | 73.5 | 75.4 | 77.6 | 79.6 | 81.7 | 83.5 |
| Frame reach (cm) | 36 | 36.4 | 36.8 | 37.1 | 37.4 | 37.7 | 38 | 38.3 | 38.6 |
| Frame stack (cm) | 51 | 52.7 | 54.6 | 56.1 | 57.5 | 59.1 | 61.1 | 63.2 | 65.6 |
| Saddle rail height min (w/short mast) (cm) | 53.5 | 55.5 | 58.5 | 61.5 | 64 | 67 | 69 | 71 | 73 |
| Saddle rail height max (w/short mast) (cm) | 60 | 62 | 65 | 68 | 70.5 | 73.5 | 75.5 | 77.5 | 79.5 |
| Saddle rail height min (w/tall mast) (cm) | 56.5 | 58.5 | 61.5 | 64.5 | 67 | 70 | 72 | 74 | 76 |
| Saddle rail height max (w/tall mast) (cm) | 63 | 65 | 68 | 71 | 73.5 | 76.5 | 78.5 | 80.5 | 82.5 |
| Frame Size | Rider Height (cm) | Rider Height (in) |
|---|---|---|
| 44 cm | 150 – 153 cm | 4'11" – 5'0" |
| 47 cm | 152 – 158 cm | 5'0" – 5'2" |
| 50 cm | 158 – 163 cm | 5'2" – 5'4" |
| 52 cm | 163 – 168 cm | 5'4" – 5'6" |
| 54 cm | 168 – 174 cm | 5'6" – 5'9" |
| 56 cm | 174 – 180 cm | 5'9" – 5'11" |
| 58 cm | 180 – 185 cm | 5'11" – 6'1" |
| 60 cm | 185 – 190 cm | 6'1" – 6'3" |
| 62 cm | 190 – 195 cm | 6'3" – 6'5" |
Specs
| Frame | 500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle |
|---|---|
| Fork | Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Wheels |
Front: Bontrager Paradigm 23 TLR Disc Road Wheel Rear: Bontrager Paradigm 23 TLR Disc Road Wheel |
| Tires | Bontrager Kwaremont Pro TLR, tubeless ready, folding bead, Race Dual-Compound, 120 tpi, 700x32mm |
| Bottom Bracket | Praxis Shimano T47 Inboard Bottom Bracket |
| Crankset | Shimano 105 R7100, 50/34 |
| Shifters | Shimano 105 R7120, 12 speed |
| Front Derailleur | Shimano 105 R7100, braze-on, down swing |
| Rear Derailleur | Shimano 105 R7100, 36T max cog |
| Cassette/Freewheel | Shimano 105 7101, 11-34, 12 speed |
| Chain | Shimano SLX M7100, 12 speed |
| Brakes | Shimano 105 hydraulic disc, flat mount |
| Rotors |
Shimano CL700, centerlock, 160mm Shimano RT70, centerlock, 160mm |
| Handlebars | Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40-46cm drop width |
| Tape/Grips | Trek Eco Tack |
| Stem | Trek RCS Pro |
| Seatpost | KVF aero carbon seatpost, 20mm offset, |
| Pedals | Sold Separately |
| Saddle | Verse Short Comp, steel rails, 145mm width |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Dark Star to Bronze Age Fade / 44cm / 700c | 197216282006 | 5337677 | |
| Dark Star to Bronze Age Fade / 47cm / 700c | 197216282013 | 5337678 | |
| Dark Star to Bronze Age Fade / 50cm / 700c | 197216282020 | 5337679 | |
| Dark Star to Bronze Age Fade / 52cm / 700c | 197216282037 | 5337680 | |
| Dark Star to Bronze Age Fade / 54cm / 700c | 197216282044 | 5337681 | |
| Dark Star to Bronze Age Fade / 56cm / 700c | 197216282051 | 5337682 | |
| Dark Star to Bronze Age Fade / 58cm / 700c | 197216282068 | 5337683 | |
| Dark Star to Bronze Age Fade / 60cm / 700c | 197216282075 | 5337684 | |
| Dark Star to Bronze Age Fade / 62cm / 700c | 197216282082 | 5337685 | |
| Ivy Smoke / 44cm / 700c | 197216282181 | 5337695 | |
| Ivy Smoke / 47cm / 700c | 197216282198 | 5337696 | |
| Ivy Smoke / 50cm / 700c | 197216282204 | 5337697 | |
| Ivy Smoke / 52cm / 700c | 197216282211 | 5337698 | |
| Ivy Smoke / 54cm / 700c | 197216282228 | 5337699 | |
| Ivy Smoke / 56cm / 700c | 197216282235 | 5337700 | |
| Ivy Smoke / 58cm / 700c | 197216282242 | 5337701 | |
| Ivy Smoke / 60cm / 700c | 197216282259 | 5337702 | |
| Ivy Smoke / 62cm / 700c | 197216282266 | 5337703 | |
| Era White/Glowstick/Coral Fade / 44cm / 700c | 197216282273 | 5338823 | |
| Era White/Glowstick/Coral Fade / 47cm / 700c | 197216282280 | 5338824 | |
| Era White/Glowstick/Coral Fade / 50cm / 700c | 197216282297 | 5338825 | |
| Era White/Glowstick/Coral Fade / 52cm / 700c | 197216282303 | 5338826 | DOM415529094 |
| Era White/Glowstick/Coral Fade / 54cm / 700c | 197216282310 | 5338827 | |
| Era White/Glowstick/Coral Fade / 56cm / 700c | 197216282327 | 5338828 | |
| Era White/Glowstick/Coral Fade / 58cm / 700c | 197216282334 | 5338829 | |
| Era White/Glowstick/Coral Fade / 60cm / 700c | 197216282341 | 5338830 | |
| Era White/Glowstick/Coral Fade / 62cm / 700c | 197216282358 | 5338831 |
